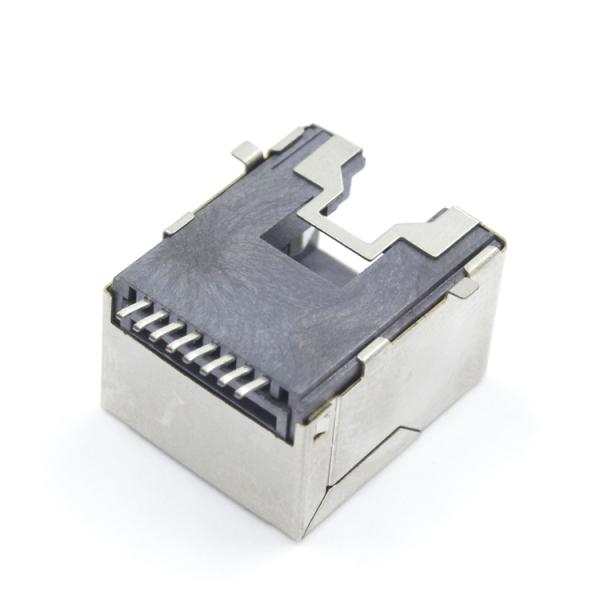

Network Right Angle Rj45 Connector 10 100 Single Port Shielded TM56S811EXX43

Brand Name : TM

Model Number : TM56S811EXX43

Certification : UL,Rohs,Reach,ISO9001

Place of Origin : Guangdong of China

MOQ : 500/1000/2000 pcs

Price : Supportive

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 500K/year

Delivery Time : 20 Days

Packaging Details : 100pcs/tray

Number of Positions : 8

Terminals per Port : 8

Product Type : RJ45 Modular Connector

Jack Type : RJ45

Shielded EMI Tabs : No

Voltage rating : 125 V

Current rating : 1.5 A

Contact resistance : 30mΩ

Insulation resistance : 500 MΩ MIN @ 500V DC

Dielectric resistance : 1000V AC RMS 50Hz. 1MIN

Contact Now

90 degree SMT RJ45 Connector 10/100, Single Port Tab down with shield TM56S811EXX43

Materials:

Housing : FR52,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Down
Connector Length: 18.65 mm
Connector Width: 15.74 mm
Connector Height: 11.75 mm
Termimal Solder Pin Length: 2.5 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

RJ45 Without Transformer (TM56S811EXX43) Attributes:

Model:	TM56S811EXX43
Place of Origin:	Guangdong of China
Certification:	UL,Rohs,Reach,ISO9001
Product Type :	RJ45 Modular Connector
Jack Type:	RJ45
Number of Positions :	8
Terminals per Port:	8
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	1pcs
Delivery Time:	20 Days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5KK/year

RJ45 Female Connector () Mechnical Drawing:
