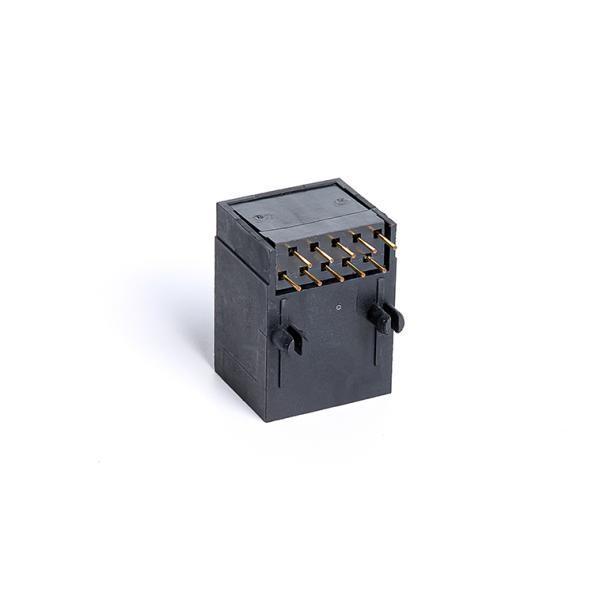

10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11

Brand Name : TM

Model Number : TM59A011SXX11

Certification : UL,Rohs,Reach,ISO9001

Place of Origin : Guangdong of China

MOQ : 1/500/1000/2000 pcs

Price : Supportive

Payment Terms : T/T, Western Union, ,Paypal

Supply Ability : 500K/year

Delivery Time : 15Days

Packaging Details : 100pcs/tray,5000pcs/carton

LED Option : No

Shielded EMI Tabs : No

Voltage rating : 125 V

Current rating : 1.5 A

Contact resistance : 30mΩ

Insulation resistance : 500 MΩ MIN @ 500V DC

Dielectric resistance : 1000V AC RMS 50Hz. 1MIN

Durrability : 750 CYCLES MIN

Minimal Order : 1PCS

Package : 100pcs/tray,5000pcs/carton

Keywords : 10 pin rj45 connector/rj45 female connector/rj45 jack/rj45 socket

Contact Now

10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11

Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu” (Optional) over nickel( RoHS )
Shielding Shell: No
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:
1 x 1 Port / Single Port / One Port
Connector Length: 20.6 mm
Connector Width: 15.30 mm
Connector Height: 13.30 mm
Termimal Solder Pin Length: 3.20 mm
10P10C ( 10 positions 10 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ45 Without Transformer (TM59A011SXX11) Attributes:

Model:	TM59A011SXX11
Place of Origin:	Guangdong of China
Certification:	UL,Rohs,Reach,ISO9001
Product Type :	RJ45 Modular Connector
Jack Type:	RJ45
Number of Positions :	10
Terminals per Port:	10
LED Option:	No
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	1pcs
Package:	100pcs/tray,5000pcs/carton
Delivery Time:	20 Days
Supply Ability:	5KK/year

RJ45 Female Connector () Mechnical Drawing:

10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11
